Solar Inverter Duty Transformer: A Comprehensive Guide by Tirupati Transformer

Solar energy has emerged as one of the most sustainable and efficient power sources in India today. As solar power systems continue to expand across the country — from utility-scale ground-mount farms to rooftop installations — the role of specialised equipment like solar inverter duty transformers has become increasingly important. At Tirupati Transformer, we manufacture solar inverter duty transformers designed for reliable power conversion from solar inverter output to grid-compatible voltage.

If you’re still deciding which type of solar transformer your project needs, see our guide to choosing among solar transformer manufacturers in India before continuing here.

India’s solar sector is expanding rapidly under the Ministry of New and Renewable Energy’s renewable energy targets, directly driving demand for reliable, correctly specified transformers at every project site.

What Is a Solar Inverter Duty Transformer?

A solar inverter duty transformer is a purpose-built step-up transformer that connects a solar PV inverter’s output to the utility grid or a plant’s HT distribution network. It steps up the inverter’s AC output voltage to grid voltage levels — typically 11 kV, 22 kV, or 33 kV — enabling efficient transmission of generated solar power.

Unlike a conventional distribution transformer, a solar inverter duty transformer is specifically engineered to handle the unique electrical characteristics of inverter output: high-frequency switching harmonics, a daily load profile that swings from zero to full capacity, and continuous overnight energization at no load.

Tirupati Transformer’s Experience

We have supplied solar inverter duty transformers for projects across multiple Indian states, including a ground-mount solar farm installation in a valley/hill-terrain region of Himachal Pradesh — a site where terrain-specific installation planning was required alongside the standard electrical design work every solar transformer needs.

Our project experience includes:

• Ground-mount solar farms across multiple states
• Rooftop solar installations on commercial and industrial buildings
• Hill-terrain / valley-region sites requiring site-specific installation planning
• Solar-wind hybrid project configurations

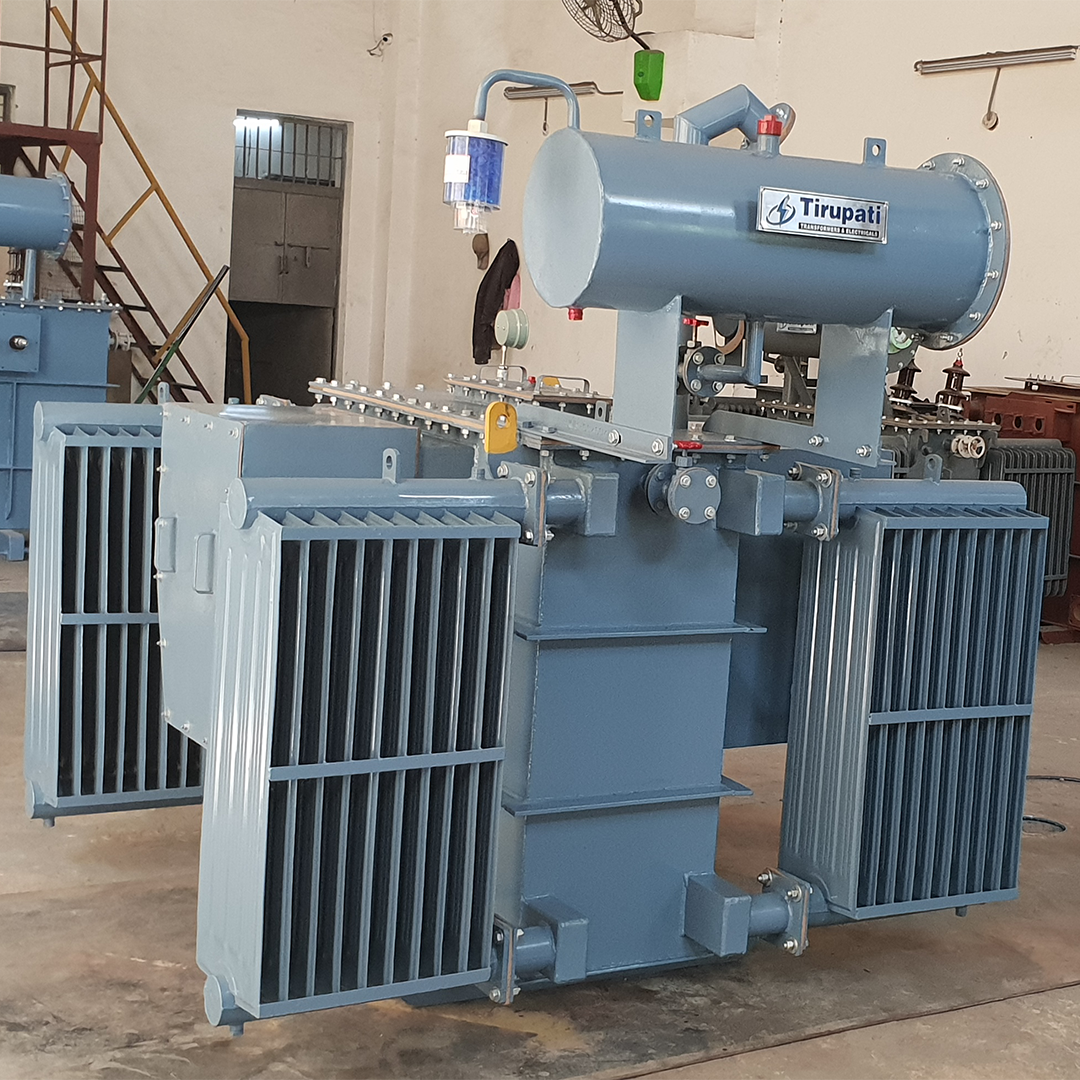

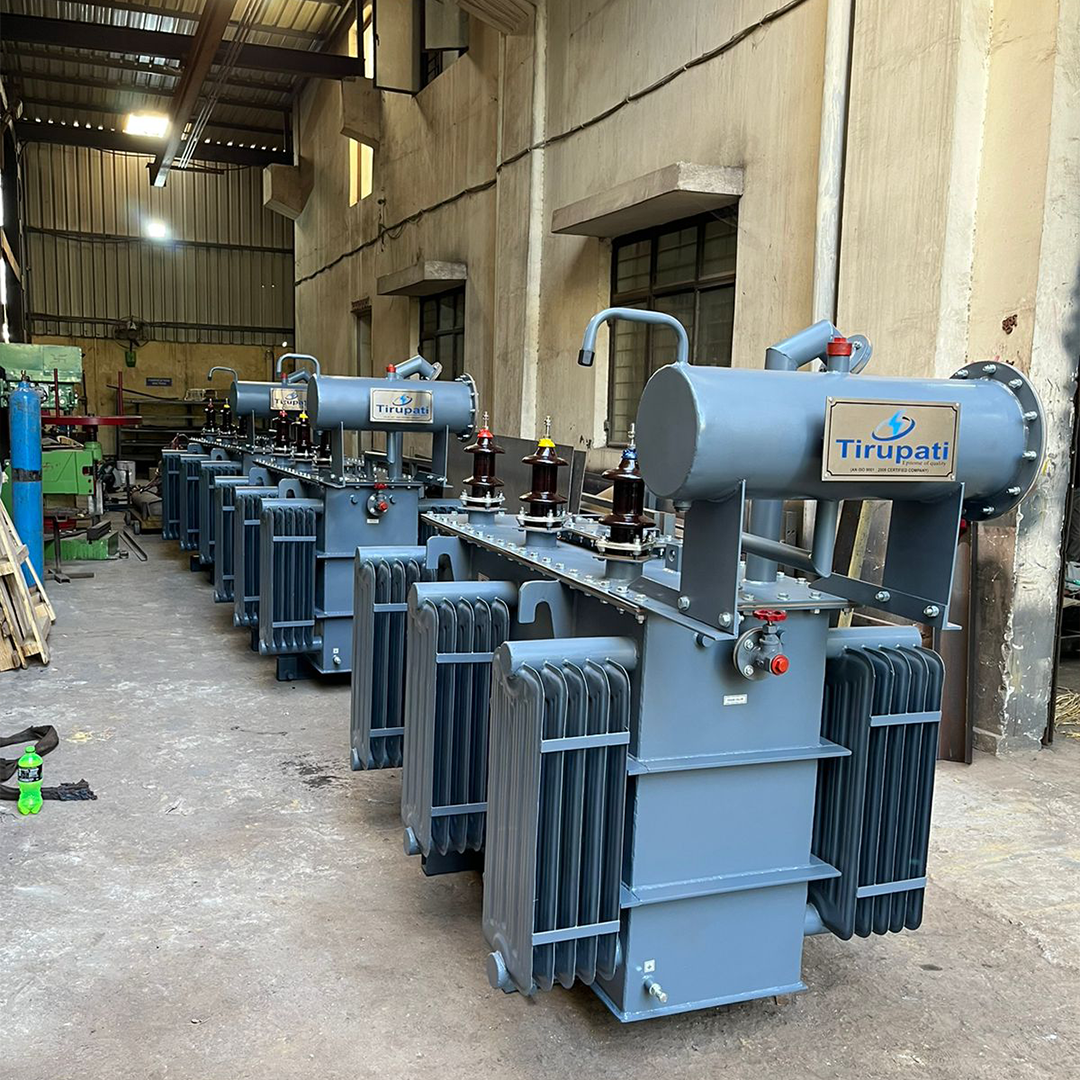

Key Features of Our Solar Inverter Duty Transformers

1. K-Factor Rated Windings Our units use K-factor rated windings (K-4 to K-13 depending on inverter specification) to tolerate the harmonic currents generated by high-frequency inverter switching without overheating — a requirement standard transformers aren’t designed to meet.

2. Dyn11 Vector Group We use Dyn11 as the standard vector group for solar inverter duty applications, which traps triplen harmonics within the delta winding rather than letting them propagate into the HT grid — a requirement enforced by most state grid codes and CEA connectivity regulations.

3. Low No-Load Loss Core Options Since these units stay energized overnight regardless of generation, minimising no-load (core) losses matters more here than in standard applications. We offer an amorphous core option delivering up to 70% lower no-load losses versus standard CRGO cores.

4. Copper Winding Construction Electrolytic copper windings keep load losses and operating temperature down across the daily thermal cycle from zero to peak load, supporting longer insulation life.

5. Outdoor-Rated Enclosure Units are available with IP54 protection for direct outdoor installation without requiring a separate transformer room.

6. Dry-Type Option for Fire-Sensitive Sites For rooftop installations on occupied buildings where fire codes restrict oil-filled equipment indoors, our Cast Resin Transformer and VPI dry-type variants provide equivalent solar duty performance in a fire-safe, maintenance-friendly construction.

Applications

• Utility-scale ground-mount solar farms — 1 MW to 500 MW class installations
• Rooftop solar — commercial and industrial buildings, typically 100 kVA–2000 kVA
• Solar-wind hybrid projects — multi-winding designs for combined inverter output
• Solar pumping and rural electrification — including PM-KUSUM scheme installations
• Hill-terrain and valley-region sites — where installation planning must account for terrain access and site conditions

We also supply Power Transformer units for solar plant pooling substations, and full Electrical Turnkey Projects services covering HT cabling, switchgear, and substation commissioning for solar farms.

Why Choose Tirupati Transformer?

1. Solar Sector Experience We have supplied solar inverter duty transformers across multiple Indian states, including hill-terrain and valley-region installations that required site-specific engineering adjustments.

2. Quality Testing Every transformer undergoes routine testing (voltage ratio, resistance, impedance) and type testing (temperature rise, impulse, short circuit as applicable) before dispatch, with test reports provided.

3. Custom Engineering Every solar site differs in voltage class, ambient conditions, and installation constraints. Our engineering team works with clients to size and configure each unit for its specific site rather than defaulting to a fixed catalogue size.

4. Direct Manufacturer Pricing As a manufacturer, we quote directly without distributor margins.

5. Technical Support Our engineering team is available to help you size a transformer correctly against your inverter’s specification and site conditions before you order.

Case Study: Ground-Mount Solar Farm, Hill-Terrain Region, Himachal Pradesh

One of our projects involved supplying a 2000 kVA solar inverter duty transformer for a ground-mount solar farm in a valley/hill-terrain region of Himachal Pradesh.

What the site required:

• Installation planning adapted for hill-terrain access and site layout
• Standard electrical design for harmonic tolerance and grid compliance, as with any solar inverter duty transformer
• Coordination on delivery logistics appropriate to the site’s location

Selection Criteria: How to Choose the Right Capacity

When choosing a solar inverter duty transformer, consider:

1. Solar plant capacity (kW/MW) — your total connected generation capacity
2. Inverter output voltage — match to the transformer’s primary rating
3. Grid voltage requirement — 11 kV, 22 kV, or 33 kV, per your interconnection agreement
4. Non-linear load share — higher harmonic content typically requires 20–25% additional sizing headroom over standard sizing
5. Ambient and site conditions — temperature range, altitude, and installation environment
6. Future expansion plans — whether additional inverter capacity may be added later

Compliance and Standards

Our solar inverter duty transformers are manufactured to:

• IS1180 and IS 2026 (Indian Standards for transformers, per the Bureau of Indian Standards)
• IEC 60076 (International transformer testing standard)
• BIS certification requirements
• CEA grid connectivity regulations governing grid-connected renewable energy projects in India

Frequently Asked Questions

Q1. Which factors matter most when choosing a solar inverter duty transformer manufacturer in India?

Ans: Look for BIS-compliant products, IEC 60076 testing, custom design capability, copper winding options, in-house factory testing, and documented after-sales support. Tirupati Transformer manufactures units from 100 kVA to 5,000 kVA for utility-scale, commercial, and industrial solar projects across India.

Q2. What is the difference between a solar inverter duty transformer and a distribution transformer?

Ans: A solar inverter duty transformer is specifically designed to handle harmonic distortion, a variable daily load profile from solar generation, and continuous overnight no-load energization. A standard distribution transformer is built for stable, sinusoidal loads and isn’t optimised for these conditions.

Q3. How do I select the right capacity?

Ans: Base it on your solar plant’s capacity, inverter output voltage, grid voltage requirement, and the share of non-linear load in your system — non-linear loads typically need 20–25% additional sizing headroom over the connected kVA figure.

Q4. Which vector group is recommended?

Ans: Dyn11 is the standard recommendation for solar inverter duty transformers in India, providing harmonic suppression and neutral availability for grid-connected applications, though the exact requirement depends on your utility’s grid code.

Q5. What determines the price of a solar inverter duty transformer?

Ans: Capacity, voltage rating, cooling method, winding material (copper vs aluminium), tap changer type, and any custom project requirements. Share your project specification for an accurate quotation.

Q6. Why are copper windings preferred?

Ans: Copper offers higher electrical conductivity, lower energy losses, better thermal performance, and improved short-circuit strength compared to aluminium — generally preferred for utility-scale solar projects where long-term reliability matters most.

Q7. Do you supply transformers for hill-terrain or difficult-access sites?

Ans: Yes — we have experience with valley/hill-terrain ground-mount installations requiring site-specific installation planning in addition to standard electrical design.

Why Choose Tirupati Transformer for Solar Inverter Duty Transformers?

Tirupati Transformer is a trusted Solar Inverter Duty Transformer manufacturer in India offering:

• 10+ Years of Manufacturing Experience
• ISO 9001:2015 Certified Facility
• BIS-Compliant Products
• Factory Routine Testing
• Custom Designs up to 10 MVA
• Pan-India Supply
• Technical Support
• Competitive Factory Pricing
• Reliable After-Sales Service

Our engineering team helps customers select the right transformer based on plant capacity, voltage levels, and site conditions to ensure reliable long-term performance. Factory visits welcome at our Greater Noida facility before you confirm an order. Request a Quote →
