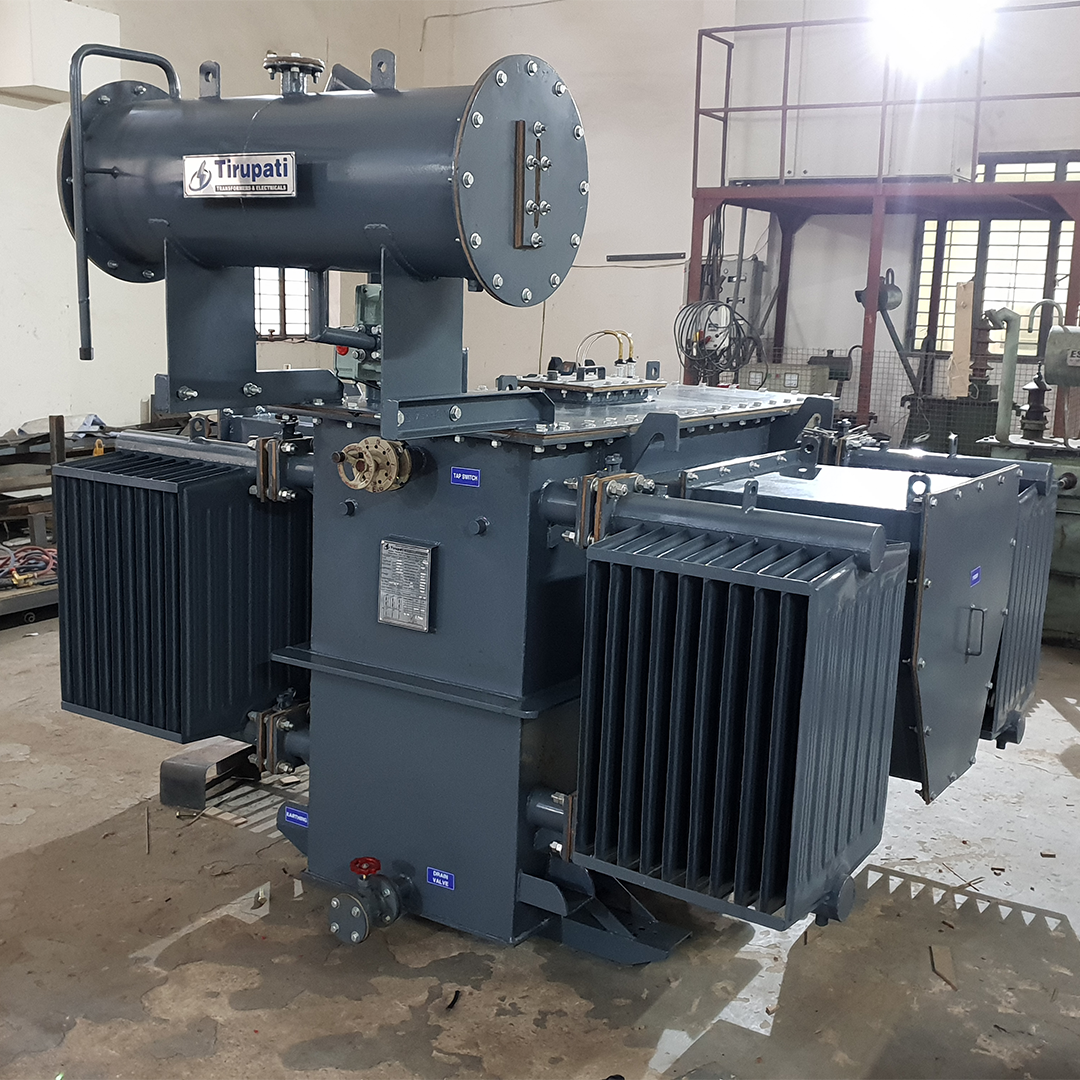

Converter Duty Transformer – High Performance Power Solution for Industry

A Converter Duty Transformer is a specialized transformer designed to work seamlessly with power electronic converters such as rectifiers, inverters, and thyristor-controlled devices. Unlike standard transformers, these are engineered to handle high harmonic content, non-sinusoidal loads, and frequent switching transients that are common in modern industrial power systems. Tirupati Transformer is a leading Converter Duty Transformer manufacturer based in Delhi NCR, delivering custom-built, ISO certified solutions to industries across India.

What is a Converter Duty Transformer?

A Converter Duty Transformer is a modified power transformer built to operate with power electronic systems including HVDC systems, industrial drives, and renewable energy configurations. It handles high harmonics, rapid load changes, and electrical stress caused by fast-switching devices.

These transformers provide stronger insulation, better cooling, and lower losses compared to standard transformers — making them reliable even in the harshest industrial environments where conventional transformers would fail.

Key Features of Converter Duty Transformer

High Harmonic Tolerance

Designed to withstand non-sinusoidal waveforms and high harmonic currents generated by power electronic converters, ensuring uninterrupted and stable operation at all times.

Electromagnetic Isolation

Provides complete isolation between the power grid and the converter system, protecting sensitive industrial equipment and ensuring operational safety.

Multiple Secondary Windings

Supports 6-pulse, 12-pulse, and 24-pulse converter configurations by delivering multiple phase-shifted outputs, giving greater flexibility for complex industrial setups.

Low Loss CRGO Core

Uses prime quality Cold Rolled Grain Oriented (CRGO) silicon steel in the core with step-lap design to achieve exceptionally low no-load losses and improved energy efficiency.

ONAN / ONAF Cooling System

Equipped with conventional pressed steel radiators supporting both Oil Natural Air Natural (ONAN) and Oil Natural Air Forced (ONAF) cooling methods for reliable thermal management.

Superior Short Circuit Strength

Built with reinforced winding structure using electrolytic copper with insulating paper multi-covered round wires, providing exceptional short-circuit withstand capability.

Applications of Converter Duty Transformer

Converter Duty Transformers are used across a wide range of industries and power systems:

Industrial Applications

• Variable Speed Drives (VSD) – Motor speed control in manufacturing plants
• DC Arc Furnace – Steel and metal melting processes
• Aluminium Electrolysis – Aluminium production facilities
• Copper Refining – Copper processing and purification plants
• Graphitizing Furnaces – Carbon and graphite industry
• Traction Substations – Railways, metros, and electric traction systems

Renewable Energy Applications

In solar power plants, photovoltaic panels generate DC current at low voltage. The inverter converts this DC to AC, but the voltage remains too low for grid connection. The Converter Duty Transformer steps up this voltage from a few kV to the grid-required 11 kV to 33 kV, making it an essential component in every solar energy project.

Why Choose Tirupati Transformer?

Tirupati Transformer is a trusted Converter Duty Transformer manufacturer serving industries across Delhi NCR and all over India. Here is why our clients choose us:

• ISO Certified Manufacturing – Every transformer is built to international quality standards
• Fully Customized Solutions – Designed as per your exact load, voltage, and pulse requirements
• NABL Accredited Testing – All units tested at NABL approved laboratories
• On-Time Delivery – Strong logistics network ensuring zero project delays
• Expert Engineering Team – Decades of experience in transformer design and manufacturing
• Dedicated After-Sales Support – Full technical support after installation

Explore our full range of Power Transformers and Distribution Transformers built for every industrial application.

Things to Consider Before Buying a Converter Duty Transformer

• KVA / MVA Rating – Choose capacity based on your actual load requirement
• Voltage Ratio – Clearly define primary and secondary voltage levels
• Pulse Configuration – Select 6-pulse, 12-pulse, or 24-pulse based on your application
• Cooling Method – Choose ONAN or ONAF based on your installation environment
• Standards Compliance – Always buy IS 2026 or IEC 60076 certified units
• Manufacturer Credibility – Choose an ISO certified and NABL tested manufacturer

Frequently Asked Questions (FAQ)

What is a Converter Duty Transformer used for?

A Converter Duty Transformer is used in industrial applications where power electronic converters such as rectifiers, inverters, and variable speed drives are involved. Common uses include steel plants, solar energy systems, aluminium production, and traction substations.

What is the difference between a Converter Duty Transformer and a normal transformer?

A standard transformer is designed for linear loads only. A Converter Duty Transformer is specially designed to handle non-linear loads, high harmonic currents, and transient voltage spikes generated by power electronic equipment.

What pulse configurations are available?

Tirupati Transformer offers Converter Duty Transformers in 6-pulse, 12-pulse, and 24-pulse configurations depending on the drive system requirement.

Can I get a customized Converter Duty Transformer?

Yes. Tirupati Transformer provides fully customized converter duty transformers designed to match your specific voltage ratio, capacity, cooling method, and installation requirements.

What is the delivery time?

Standard delivery time is 30 to 45 days after order confirmation and specification finalization.

For technical standards and specifications of power transformers, refer to the official Bureau of Indian Standards – IS 2026 and IEC 60076 International Standard.

Get Your Converter Duty Transformer Today

If you need a reliable, high-performance Converter Duty Transformer for your industrial or renewable energy project, Tirupati Transformer is your trusted partner. We deliver across Delhi NCR and all major cities in India with full technical support.

Ready to place an order? Visit our Contact Page and speak directly with our engineering team today.

• Best quality products at nominal prices.
• Strong and well equipped.
• Available with low maintenance costs.
• Protected from voltage fluctuations.
• Operating effectively and efficiently.
• It is customized according to customer’s need.
