VPI Dry-Type Transformers up to 3 MVA and 33 KV — Oil-Free, Fire-Safe and Built for Demanding Indoor and Outdoor Installations

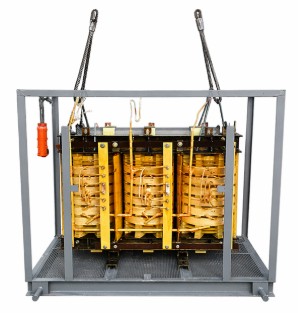

What Is a Vacuum Pressure Impregnated Transformer?

A Vacuum Pressure Impregnated Transformer — commonly referred to as a VPI transformer — is an advanced dry-type transformer in which the assembled winding coils are impregnated with a specially formulated polyester or epoxy varnish under a controlled combination of vacuum and positive pressure. This dual-stage VPI process ensures complete, void-free penetration of the impregnating varnish into every layer of the winding insulation — producing a rigid, moisture-resistant, mechanically strong winding assembly that outperforms conventional varnish-dipped or vacuum-only impregnated windings.

The VPI process represents a significant technological step above standard vacuum impregnation. By applying positive pressure after the vacuum stage, the Vacuum Pressure Impregnated Transformer Manufacturer India achieves superior varnish penetration depth and density — eliminating air voids that would otherwise cause partial discharge, accelerated insulation ageing, and premature transformer failure under sustained electrical stress.

Tirupati Transformers Pvt. Ltd. is a leading Vacuum Pressure Impregnated Transformer manufacturer based in Greater Noida, Delhi NCR, supplying VPI transformers up to 3 MVA and 33 KV to industrial plants, commercial installations, infrastructure projects, and utilities across India — in full compliance with Bureau of Indian Standards IS 11171 and IEC 60076.

For higher insulation performance in extremely harsh environments, also explore our Cast Resin Transformer — where windings are fully encapsulated in epoxy resin rather than varnish-impregnated.

The VPI Manufacturing Process — What Makes It Superior

Understanding the manufacturing process helps explain why a Trusted Vacuum Pressure Impregnated Transformer Manufacturer India delivers better long-term reliability than standard dry-type alternatives.

Stage 1 — Pre-Drying

The assembled winding coils are first pre-dried in an oven at elevated temperature to remove all residual moisture from the insulation materials. Moisture is the primary enemy of winding insulation — even small quantities accelerate electrical ageing and reduce dielectric strength. Thorough pre-drying is the foundation of a reliable VPI winding.

Stage 2 — Vacuum Application

The pre-dried windings are placed in a sealed VPI tank and the air pressure is reduced to a deep vacuum — typically below 5 mbar. This vacuum stage evacuates all remaining air and moisture from within the winding insulation structure, creating the void space required for complete varnish penetration in the next stage.

Stage 3 — Pressure Impregnation

With the windings still under vacuum, the impregnating varnish — typically a solvent-free polyester or modified epoxy resin — is introduced into the tank and floods the windings. Positive pressure is then applied, forcing the varnish into every microscopic void and interlayer space within the coil. This combination of vacuum and pressure is what distinguishes the Best Vacuum Pressure Impregnated Transformer Manufacturer India process from basic vacuum impregnation — and what delivers its superior electrical and mechanical properties.

Stage 4 — Curing

The impregnated windings are oven-cured at the manufacturer-specified temperature and duration to fully crosslink the varnish — creating a rigid, glass-like insulation matrix that bonds all winding layers together, provides excellent moisture exclusion, and gives the finished coil its characteristic mechanical strength and dielectric integrity.

Key Features and Technical Advantages

Superior Moisture and Humidity Resistance

The fully impregnated winding structure of a Top 10 Vacuum Pressure Impregnated Transformer Manufacturer India provides excellent resistance to moisture ingress — making it suitable for installation in coastal areas, humid industrial environments, food processing facilities, chemical plants, and outdoor locations where conventional dry-type windings would absorb moisture and suffer insulation degradation.

High Mechanical Strength and Short-Circuit Withstand

The rigid, void-free winding structure produced by the VPI process delivers significantly higher mechanical strength than conventionally insulated windings. This translates directly into superior short-circuit withstand capability — the winding coils resist the high electromagnetic forces generated during fault conditions without displacement or deformation, protecting transformer integrity under the most severe electrical stress conditions.

Excellent Partial Discharge Performance

By eliminating air voids within the winding insulation, the VPI process eliminates the sites where partial discharge (PD) activity initiates. Low partial discharge levels — a direct result of the void-free impregnation — indicate a healthier insulation system with longer service life and better reliability throughout the transformer’s operational life. This is verified through partial discharge testing per IEC 60076-11 during factory acceptance testing.

Oil-Free, Fire-Safe Construction

Like all dry-type transformers, the Vacuum Pressure Impregnated Transformer Supplier India contains no insulating oil — eliminating the risk of oil leaks, oil fires, and environmental contamination. This makes VPI transformers fully suitable for installation inside buildings, underground facilities, hospitals, hotels, shopping malls, and other locations where oil-filled transformers are prohibited by fire safety regulations or insurance requirements.

Class F and Class H Insulation Options

Our Top 10 Vacuum Pressure Impregnated Transformer Supplier India units are available with two insulation class options to suit different operating temperatures and ambient conditions:

• Class F Insulation — rated for continuous operation at 155°C winding hot-spot temperature, using NOMEX, silicon varnish, and fibreglass insulation materials. Suitable for most standard industrial and commercial applications.
• Class H Insulation — rated for continuous operation at 180°C hot-spot temperature, using premium NOMEX and high-temperature silicon varnish. Recommended for high-ambient-temperature environments, high-load-factor applications, or installations with limited ventilation.

Air Natural and Air Forced Cooling

Standard units use Air Natural (AN) cooling — relying on natural convection airflow through the enclosure for heat dissipation. For applications requiring higher continuous load capacity within a compact footprint, Air Forced (AF) cooling with forced-air fans is available — increasing the unit’s continuous KVA rating without increasing winding temperatures.

Compact Enclosure with IP Protection

Every Vacuum Pressure Impregnated Transformer Price India is supplied in a robust powder-coated steel enclosure finished in RAL 7032 as standard, with inspection windows for visual core and winding inspection without removing the enclosure panels. IP21 protection is standard for indoor installations; higher IP ratings are available for outdoor or dusty industrial environments.

Standard Fittings and Optional Accessories

Standard Fittings — Supplied with Every Unit

Every Vacuum Pressure Impregnated Transformer Manufacturer from Tirupati includes a comprehensive set of factory-fitted accessories:

• HV cable box
• Undercarriage with four bi-directional rollers for easy positioning
• Lifting lugs for complete transformer
• Hinged inspection windows for core and winding visual access
• LV cable box with bus bar or bus duct connection
• Earthing terminals
• Enclosure with access panels
• Separate neutral bushing on LV side
• Off-circuit tap links
• Rating and diagram nameplate
• Canopy (for units with outdoor duty)

Optional Fittings — Available on Request

• Forced cooling arrangement (Air Forced fans and controls)
• Marshalling box with control wiring
• Neutral current transformer (CT)
• On-load tap changer (OLTC) with RTCC panel and Automatic Voltage Regulator (AVR)
• Higher IP enclosure rating for outdoor or industrial environments
• Anti-condensation heaters for cold-climate installations

Applications — Where VPI Transformers Are Used

The Vacuum Pressure Impregnated Transformer Cost India is the preferred dry-type solution for a wide range of demanding applications where standard oil-filled transformers are unsuitable and where the enhanced performance of Vacuum Pressure Impregnated Transformer is required over basic varnish-dipped alternatives.

Indoor Industrial Installations

Manufacturing plants, chemical factories, pharmaceutical facilities, and process industries requiring indoor substation transformers benefit from the VPI design’s superior moisture resistance, fire safety, and low maintenance requirements — particularly in areas with high ambient humidity, chemical vapours, or contaminated atmospheres.

High-Rise Buildings, Hospitals and Hotels

Commercial real estate developers, hospital administrators, and hotel operators specify dry-type VPI transformers for building electrical installations where oil-free, fire-safe, low-maintenance transformer technology is required by building codes, fire safety regulations, or insurance underwriters.

For applications requiring the highest level of fire protection and complete weather-sealing, our Cast Resin Transformer with epoxy-encapsulated windings provides an additional level of environmental and fire protection over Vacuum Pressure Impregnated Transformer construction.

Underground and Confined Space Installations

Metro rail substations, underground car parks, tunnel lighting systems, and basement electrical rooms require transformers that can safely operate in confined, poorly ventilated spaces without oil fire risk — making the Vacuum Pressure Impregnated Transformer the standard choice for these applications.

Coastal and High-Humidity Environments

Installations in coastal industrial zones, port facilities, shipyards, and humid tropical environments place exceptional demands on transformer insulation — demands that the moisture-resistant VPI winding construction is specifically engineered to meet, maintaining reliable dielectric performance where conventional insulation would deteriorate rapidly.

Urban Distribution Substations

State electricity boards and urban distribution companies increasingly specify dry-type VPI units for compact urban substations located close to residential areas, commercial centres, and public spaces — where the environmental and safety profile of oil-free transformers is strongly preferred by regulators and local authorities.

According to the Central Electricity Authority (CEA), India’s urban power distribution network is undergoing significant expansion and modernization — driving growing demand for safe, compact, low-maintenance dry-type distribution transformers in city substations and urban commercial developments.

For complete substation solutions incorporating VPI transformers, our Compact Substation range integrates the transformer, HT switchgear, and LT panel in a single factory-assembled enclosure.

Frequently Asked Questions – VPI Transformer

What is the difference between a VPI transformer and a Cast Resin Transformer?

Both are dry-type, oil-free transformers — but their winding insulation systems differ significantly. A Buy Vacuum Pressure Impregnated Transformer India uses varnish impregnation under vacuum and pressure to protect winding insulation, while a Cast Resin Transformer fully encapsulates the windings in a solid epoxy resin casting. Cast resin provides marginally better resistance to extreme moisture and chemical attack, but VPI transformers offer a cost-effective alternative with excellent performance for most industrial and commercial applications. See our Cast Resin Transformer page for a detailed comparison.

What insulation class should I choose — Class F or Class H?

Class F (155°C) is suitable for most standard commercial and industrial indoor installations with normal ambient temperatures up to 40°C. Class H (180°C) is recommended for installations with higher ambient temperatures, higher continuous load factors, limited ventilation, or applications in hot industrial environments such as steel plants, cement factories, and process industries.

Can a Vacuum Pressure Impregnated Transformer be installed outdoors?

Yes. Our units are available with canopy, higher IP-rated enclosures, and weather protection accessories for outdoor duty. For pole-mounted outdoor applications, we supply units in appropriate enclosures rated for outdoor environmental conditions. Specify your installation environment when requesting a quotation so we can confirm the correct enclosure and accessory specification.

What standards do your VPI Transformers comply with?

All units are manufactured and tested in compliance with IS 11171 (Indian Standard for Dry-Type Power Transformers), IEC 60076 (International Standard for Power Transformers), and IEC 60076-11 (specific requirements for dry-type transformers) — verified through Bureau of Indian Standards (BIS) certification and factory acceptance testing with full test reports provided at dispatch.

What is the maximum rating available for VPI Transformers?

Tirupati Transformers manufactures Vacuum Pressure Impregnated Transformer units up to 3 MVA (3000 KVA) with voltage class up to 33 KV. For higher capacity requirements, our Power Transformer range extends up to 10 MVA.

What is your delivery timeline?

Standard delivery is 6 to 10 weeks from order confirmation, depending on KVA rating, insulation class, and optional accessory requirements. Contact our sales team with your full specification for an accurate delivery schedule.

Do you provide after-sales service and maintenance support?

Yes. Tirupati Transformers provides installation supervision, commissioning support, and periodic maintenance services for all units we supply — including insulation resistance testing, partial discharge measurement, and thermographic inspection — helping you maintain peak transformer performance throughout its service life.

Why Choose Tirupati Transformers for VPI Transformers

Specialized Dry-Type Transformer Expertise

Tirupati Transformers has deep, dedicated expertise in both Vacuum Pressure Impregnated Transformer and Cast Resin Transformer technology — allowing our engineering team to recommend the right dry-type solution for your specific application, installation environment, and budget.

IS 11171 and IEC 60076 Certified Manufacturing

Every unit is manufactured in compliance with IS 11171 and IEC 60076 — with factory acceptance test reports, type test certificates, and BIS certification documentation provided at dispatch for regulatory approvals and customer records.

Direct Manufacturer — Competitive Pricing

As a manufacturer supplying direct from our Greater Noida facility, we eliminate distributor margins — offering competitive unit pricing without compromising on NOMEX insulation quality, copper winding conductivity, VPI process parameters, or testing rigour.

Pan-India Supply with Local Service Support

We supply VPI transformers to projects across Delhi, Noida, Greater Noida, Ghaziabad, Meerut, Faridabad, Gurgaon, Jaipur, Lucknow, Kanpur, and all major industrial centres — with after-sales service available across our supply geography.

Get a Quote for Your VPI Transformer Requirement

Whether you are specifying a dry-type transformer for a new industrial plant, an urban substation, a hospital electrical installation, or a coastal facility — Tirupati Transformers will deliver the right Vacuum Pressure Impregnated Transformer for your application. Learn More About Our VPI Process — Contact Our Engineers.
