Oil Cooled Distribution Transformer Ghaziabad: How It Works & When to Choose It (2026 Guide)

An Oil Cooled Distribution Transformer uses mineral oil for both electrical insulation and cooling. Tirupati Transformer manufactures BIS-compliant oil cooled distribution transformers from 100 kVA to 10 MVA, up to 33 kV, in accordance with IS 1180 and IS 2026 standards. This guide explains how these transformers work, when they are the right choice over dry-type transformers, and what to expect in terms of performance, maintenance, and lifecycle cost.

Ghaziabad’s industrial belt — Sahibabad, Loni, Modinagar, the NH-58 corridor — runs on transformers that see continuous heavy load through 43°C summers. Understanding how this unit actually manages that heat helps you buy the right one the first time, instead of learning the hard way after a failure.

What Is an Oil Cooled Distribution Transformer?

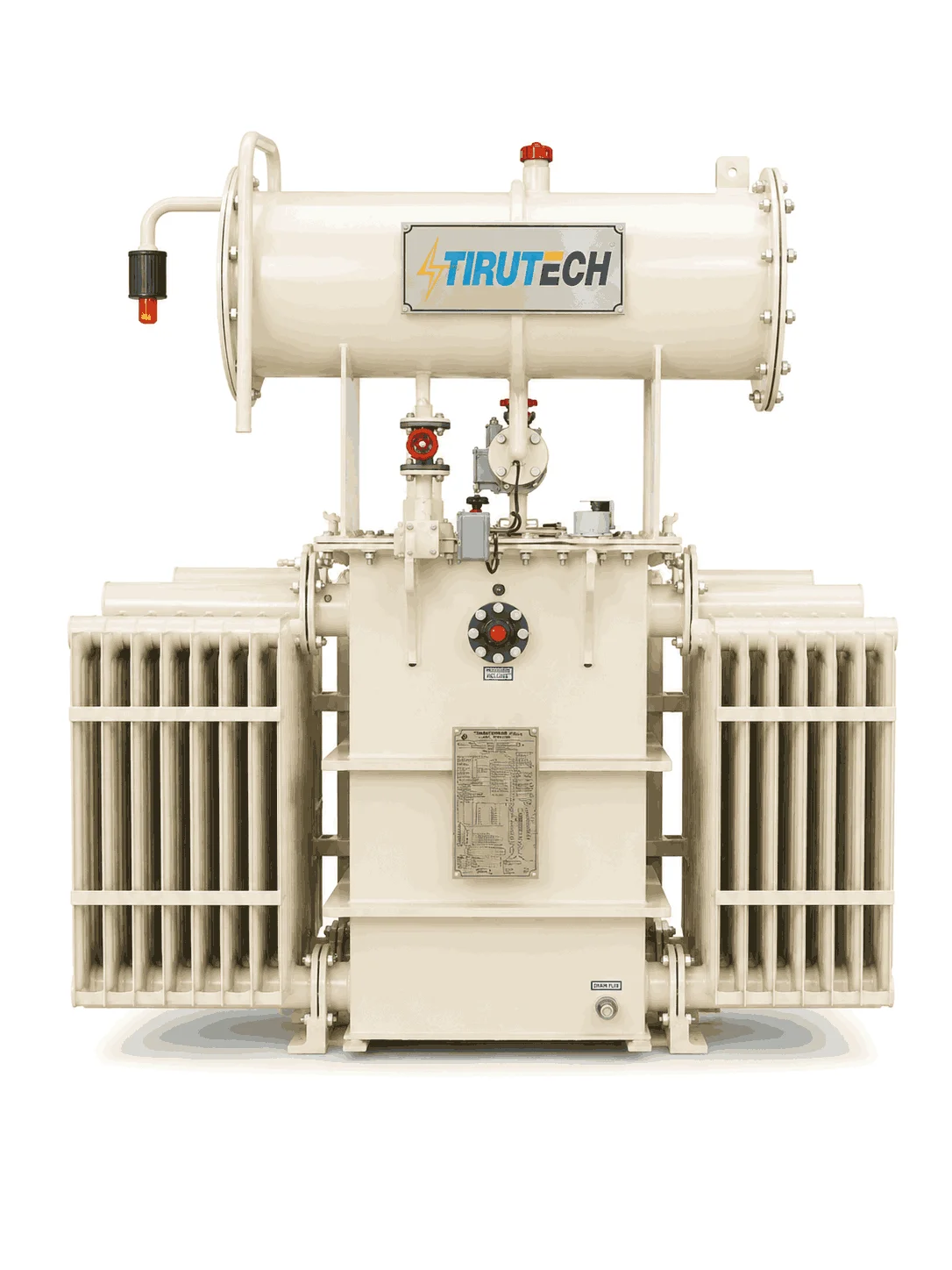

It immerses the core and windings in mineral oil inside a sealed tank. The oil does two jobs at once: it insulates the live conductors from each other and from the tank, and it carries heat away from the core and windings to the tank surface or radiator fins, where it dissipates into the air.

This dual-purpose design is why these units keep running for decades with basic maintenance — a single medium handles both insulation and thermal management, which is simpler and more heat-tolerant than dry-type designs at the same rating.

How ONAN & ONAF Cooling Works?

ONAN uses natural oil circulation and natural air cooling, while ONAF adds cooling fans to increase the transformer’s load-carrying capacity.

• ONAN (Oil Natural, Air Natural): Heated oil rises through natural convection inside the tank, moves through external radiator fins, cools, and sinks back down. No fans, no pumps — pure convection. This is the standard cooling mode for most units up to a few MVA.
• ONAF (Oil Natural, Air Forced): Fans are added at the radiator fins to force air across them, increasing the heat dissipation rate. This lets the same transformer carry a higher load for longer periods — useful where Ghaziabad’s peak summer ambient temperatures push a unit close to its ONAN limit.

Tirupati Transformer builds both configurations, with corrugated fin tank construction that increases surface area for better natural cooling even in ONAN mode.

Oil Cooled Distribution Transformer Ghaziabad vs Dry Type: Which Should You Choose?

If your installation is outdoors or in a dedicated substation yard with continuous industrial loading, this is almost always the more economical and higher-capacity choice. If the transformer must sit inside an occupied building, our Cast Resin Transformer range is the right alternative.

Why Ghaziabad’s Climate and Load Profile Favor Oil Cooled Units

Ghaziabad summers regularly cross 43°C, and industrial loads in Sahibabad and Loni often run close to full rated capacity through the day. Oil’s thermal mass gives it an advantage here — it absorbs and buffers short-term load spikes better than air-cooled dry-type designs at the same rating, which matters when a factory’s connected load fluctuates through shift changes.

For sites needing the transformer, switchgear, and LV panel in one factory-built package, our Compact Substation range integrates one into a ready-to-install enclosure.

Lifecycle Cost and Maintenance

It typically runs 25-30 years with basic upkeep:

• Oil BDV testing — annually; filter or replace oil if breakdown voltage drops below 40kV.
• Silica gel breather — replace before monsoon; a saturated (pink) breather lets moisture into the tank.
• Cooling fin cleaning — quarterly in dusty industrial zones, to maintain radiator efficiency.
• Thermography scan — annual infrared check on bushings and terminations to catch developing hot spots.

Compared to a dry-type unit’s near-zero maintenance, this needs basic annual attention — but the trade-off is a lower upfront cost and higher overload headroom, which is usually the better economics for outdoor industrial sites.

Frequently Asked Questions

Q1. Is it safe for outdoor use in Ghaziabad?

Ans: Yes — oil cooled units are the standard choice for outdoor substations and industrial yards. Standard tank sealing and bunding as per site electrical safety norms are sufficient; they are not suitable for occupied indoor spaces without fire safety clearance.

Q2. What’s the difference between ONAN and ONAF cooling?

Ans: ONAN relies on natural oil convection and air cooling through radiator fins with no fans. ONAF adds fans at the radiators to force airflow, increasing the transformer’s continuous load capacity beyond its ONAN rating.

Q3. How long does it last?

Ans: With proper maintenance — annual oil testing, timely silica gel replacement, and avoiding sustained overload — it typically lasts 25 to 30 years.

Q4. Can I upgrade an existing unit’s capacity?

Ans: Not by modifying the same unit — but adding forced-air (ONAF) cooling fans to a compatible design can extend its continuous load capacity where the base ONAN rating is being approached.

Q5. Which transformer ratings are available?

Ans: Tirupati Transformer manufactures oil cooled distribution transformers in standard ratings from 100 kVA, 160 kVA, 200 kVA, 250 kVA, 315 kVA, 500 kVA, 630 kVA, 1000 kVA, 1600 kVA, 2000 kVA, 2500 kVA, 3150 kVA, and up to 10 MVA. Custom ratings and voltage configurations are also available to suit specific industrial, commercial, and utility applications.

Q6. What standards do your oil cooled distribution transformers comply with?

Ans: Our oil cooled distribution transformers are manufactured in accordance with IS 1180 and IS 2026 standards using quality-tested materials and industry-approved manufacturing processes. Every transformer undergoes routine electrical testing before dispatch to help ensure reliable performance and compliance with customer specifications.

Q7. Can you manufacture custom voltage configurations?

Ans: Yes. We manufacture custom oil cooled distribution transformers based on your project’s voltage level, kVA rating, vector group, cooling method, winding material, and application requirements. Our engineering team can recommend the most suitable configuration for industrial plants, commercial buildings, renewable energy projects, and utility substations.

Q8. How do I select the right transformer capacity?

Ans: The correct transformer capacity depends on your connected electrical load, future load expansion, operating voltage, duty cycle, and installation environment. Our engineering team evaluates these factors and recommends the appropriate transformer rating to ensure efficient operation, reliable performance, and long service life.

Q9. Do you supply oil cooled distribution transformers outside Ghaziabad?

Ans: Yes. Tirupati Transformer supplies oil cooled distribution transformers across Delhi NCR and throughout India for industrial, commercial, infrastructure, renewable energy, and utility projects. We also support custom manufacturing requirements based on customer specifications.

Q10. Where can I buy one in Ghaziabad?

Ans: Tirupati Transformer manufactures and supplies the full range from 100 KVA to 10 MVA. See our Distribution Transformer Ghaziabad page for pricing and to request a quote, or call +91-9810995042.

Key Takeaway

If your project requires a transformer for outdoor installation, continuous industrial loading, and long service life, an Oil Cooled Distribution Transformer is generally the best choice. For indoor installations where fire safety is the highest priority, a Cast Resin Transformer may be a better option.

Why Choose Tirupati Transformer?

Every project has different power requirements, so our engineering team does not recommend a standard transformer without first understanding the application. We evaluate connected load, operating voltage, ambient temperature, installation location, future load expansion, and utility requirements before recommending the appropriate transformer rating and cooling configuration. This engineering-led approach helps customers improve reliability, reduce energy losses, and maximize transformer service life.

• Manufacturing Since 2014
• BIS-Compliant Transformers
• Designed as per IS 1180 & IS 2026
• 100 kVA to 10 MVA Ratings
• Copper & Aluminium Winding Options
• ONAN & ONAF Cooling Designs
• Custom-Built Solutions
• Supply Across Ghaziabad & Delhi NCR

Based on the requirements we receive from customers, oil cooled distribution transformers are most commonly specified for industrial facilities, commercial developments, utility substations, and residential township projects across Ghaziabad and Delhi NCR. The final transformer rating, cooling method, and voltage configuration are selected according to the site’s connected load, operating environment, and applicable electrical standards to ensure reliable long-term performance.

Ready to Buy an Oil Cooled Distribution Transformer in Ghaziabad?

This guide covers how an Oil Cooled Distribution Transformer Ghaziabad unit works and when it’s the right choice. For pricing, ready-stock availability, and a written quote for your Ghaziabad site, visit our Distribution Transformer Ghaziabad page or call +91-9810995042. For loads above 10 MVA, see our Power Transformer Ghaziabad range. You can also read more about transformer standards on the Bureau of Indian Standards website.
