What is a Compact Substation Transformer Uganda?

Are you looking for a reliable Compact Substation Transformer Uganda? Tirupati Transformer is a leading manufacturer and exporter of fully factory-tested, IEC 62271-202 certified compact substations for Uganda’s industrial, commercial, and utility projects.

A Compact Substation Transformer Uganda is a fully integrated, pre-assembled power unit that combines three essential components in a single weatherproof enclosure — Medium Voltage (MV) switchgear, a distribution transformer, and a Low Voltage (LV) distribution board. Unlike conventional substations that require extensive civil construction, our Compact Substation Transformer Uganda units are designed for rapid deployment, minimal footprint, and low maintenance.

A distribution substation transfers power from the transmission system to the distribution system of an area. It is uneconomical to directly connect electricity consumers to the main transmission network, unless they use large amounts of power, so the distribution station reduces voltage to a level suitable for local distribution. According to Uganda Electricity Transmission Company (UETCL) reliable power distribution infrastructure is critical for Uganda’s industrial and economic development — making quality Compact Substation Transformer Uganda units essential for all major projects.

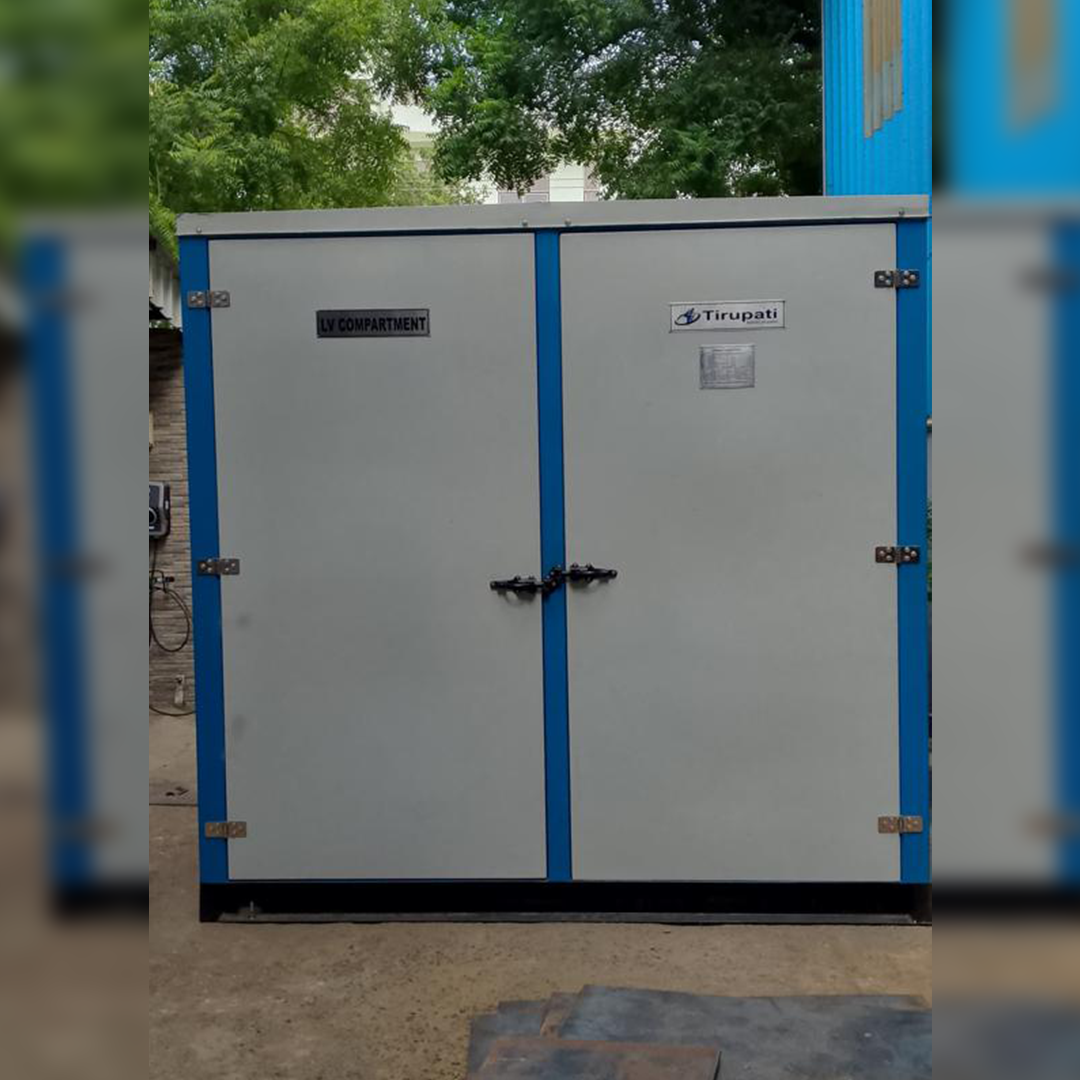

The substation is a compact enclosure consisting of MV switchgear, a transformer and an LV switchboard located in three separate compartments which are segregated from each other by means of partitions in order to ensure personnel safety. Accessibility to operate or maintain the equipment is through lockable doors provided for each compartment to maximize security. Assembly of the complete substation is factory ready to minimize site installation time and cost. All equipment is of high quality and tested as a complete unit.

We are one of India’s largest manufacturers of Compact Substation Transformer Uganda projects rely on — delivering consistent quality, IEC compliance, and on-time export to East Africa. For over a decade, industries across Uganda have trusted our Compact Substation Transformer Uganda deliveries for their critical power infrastructure needs.

Why Uganda Industries Choose Our Compact Substation Transformer

Uganda’s rapidly growing infrastructure — including oil & gas projects in Albertine region, mining operations, real estate in Kampala, and government utility expansion — demands reliable and efficient power distribution. Our Compact Substation Transformer Uganda is specifically suited for:

• Oil & Gas Projects — Albertine Graben region power distribution
• Mining & Industrial Zones — Reliable power in Jinja, Mbale, and Mbarara industrial corridors
• Real Estate & Commercial Buildings — Compact footprint ideal for Kampala urban installations
• Agricultural Processing Units — Low noise, low loss operation for continuous duty
• Utility & Grid Infrastructure — Supports UEDCL and private power distribution networks
• Solar & Renewable Energy Projects — Compatible with our Solar Inverter Duty Transformer

Key Features of Our Compact Substation Transformer Uganda

Every Compact Substation Transformer Uganda clients receive from us includes the following industry-certified features:

• Compliant with IEC 62271-202 standards
• IP53/IP23 protection — Suitable for outdoor installations in Uganda’s tropical climate
• Three-compartment design: MV Switchgear, Transformer, LV Switchboard — fully segregated for personnel safety
• Rated Voltage: 12 KV, Rated Frequency: 50 Hz
• Transformer capacity: 100 KVA to 2500 KVA
• Low power loss and low noise design for urban and residential areas
• Off-load tap changer with ±2.5% / ±5% tapping range
• Factory assembled — ready for commissioning on delivery
• Enclosure: Hot-dipped zinc coated mild steel with RAL 7032 polyester powder coating
• Lockable compartment doors for maximum site security
• Customized according to customer’s need
• Every Compact Substation Transformer Uganda order is factory tested and delivered ready for commissioning
• Contact us for your customized Compact Substation Transformer Uganda requirements

How Does Our Compact Substation Transformer Work?

MV Switchgear

• Free standing SF6 RMU
• Upto 12 KV, 630A ring switches, 250A Tee-off CB
• SF6 insulated ring switch with vacuum circuit breaker
• Protection with TLF (Time Limit Fuse) or self/auxiliary powered relay
• Fully interlocked protection with padlocking facilities
• Single line mimic diagram for simple and safe operation
• Voltage presence & earth fault indicators

Transformer

• Wide range of transformers upto 2500 KVA
• Highly energy efficient minimising losses
• The Compact Substation Transformer Uganda industries depend on is built with dry or sealed-type core technology, ensuring minimum energy loss and maximum uptime
• We also manufacture standalone Distribution Transformer and Power Transformer units.
• Plug-in bushings, Off-load tap changer
• Winding temperature and oil monitoring relay
• Our transformers comply with Bureau of Energy Efficiency (BEE) India guidelines ensuring maximum energy efficiency for Uganda’s power grid

LV Switchboard

• Feed using solid bus bars direct from transformers
• Circuit switching using moulded case circuit breakers (MCCB)
• MCCB type of incomer upto 2000A, 50 HZ
• MCCB type of outgoing feeders upto 800, 50 KA
• Feeder terminals suitable for both Cu/Al
• Current transformers for power metering

Enclosure

• Manufactured from 2 to 3mm hot-dipped zinc coated mild steel
• Finished with electrostatic polyester powder paint
• RAL 7032 standard paint finish
• Double skin roof to minimise heating by solar radiation
• Suitable for outdoor installation in Uganda’s climate

Technical Specifications — Compact Substation Transformer Uganda

Below are the detailed technical specifications of our Compact Substation Transformer Uganda projects have successfully deployed across industrial and utility sectors. All units are customizable as per your site requirements. For a custom specification sheet please get in touch with us.

Compact Substation Transformer Uganda — Manufacturer & Exporter from India

Tirupati Transformer is a trusted Compact Substation Transformer Uganda manufacturer in India exporting to Uganda, Kenya, Tanzania, Ethiopia, and across East Africa. As one of India’s top transformer exporters, we provide end-to-end solutions from design to delivery.

India-manufactured compact substations offer superior quality at 30–40% lower cost compared to European alternatives — without compromising on IEC compliance or performance.

Frequently Asked Questions — Compact Substation Transformer Uganda

Q1. What is the price of a Compact Substation Transformer in Uganda?

The price of a Compact Substation Transformer Uganda depends on KVA rating, voltage level, and customization. Contact us for a free quotation tailored to your project.

Q2. What is the delivery time for Compact Substation to Uganda?

Standard delivery time for a Compact Substation Transformer Uganda is 8–12 weeks from order confirmation, including factory testing and export documentation.

Q3. Is your Compact Substation Transformer certified for Uganda?

Yes. Our Compact Substation Transformer Uganda units comply with IEC 62271-202 standards and meet international export requirements for Uganda and all East African nations.

Q4. Can the Compact Substation be customized for my project in Uganda?

Absolutely. We customize the number of LV feeders, transformer capacity (100–2500 KVA), protection systems, and enclosure ratings as per your Uganda project specifications.

Q5. What after-sales support do you provide in Uganda?

We provide complete documentation, commissioning support, and remote technical assistance for every Compact Substation Transformer Uganda delivered.

Get a Free Quote — Compact Substation Transformer Uganda

Are you planning a power distribution project in Uganda? Contact Tirupati Transformer today and get a free technical consultation and competitive quote for your Compact Substation Transformer Uganda requirement.

• Best quality products at nominal prices.
• Strong and well equipped.
• Design conforms to IEC 62271-202 standards,
• The compartmentalized construction prevents accidental entry to energized areas,
• Meets IP53/IP23 degree of protection,
• Designed to withstand electrical impulses, thermal and dynamic stresses,
• Low power loss and low noise transformer,
• Number of feeders for LV can be customer specific,
• Easy to install
• Delivery ready for commissioning,
• Modern manufacturing techniques ensure cost effectiveness, reliability and long trouble free performance.
• It is customized according to customer’s need.

• Free standing SF6 RMU
• Upto 12 KV, 630A ring switches, 250 A Tee – off CB,
• SF6 insulated ring switch with vacuum circuit breaker,
• Protection with TLF( Time Limit Fuse) or self/auxiliary powered relay,
• Fully interlocked protection with padlocking facilities,
• Single line mimic diagram for simple and safe operation,
• Voltage presence & earth fault indicators.

Transformer

• Wide range of transformers upto 2500,
• Highly energy efficient minimising losses,
• Dry or sealed type,
• Plug-in bushings,
• Off-load tap changer,
• Winding temperature and oil monitoring relay.

In LV Switchboard,

• Feed using solid bus bars direct from transformers,
• Circuit switching using moulded case circuit breakers protection (MCCB),
• MCCB type of incomer upto 2000 A, 50 HZ,
• MCCB type of outgoing feeders upto 800, 50 KA,
• Feeder terminals suitable for both Cµ/AI,
• Current transformers for power metering.

Enclosure,

• Manufactured from 2 to 3 mm hot – dipped zinc coated mild steel,
• Finished with electrostatic polyester powder paint,
• RAL 7032 standard paint finish,
• Compartment doors with natural ventilation,
• Double skin roof to minimise heating by solar radiation,
• Lockable compartment doors,
• Lifting by forklift or crane possible,
• IP34D for HV & LV compartment,
• IP22D for transformer compartment,
• Suitable for outdoor installation.

Switch connection  MV network

Transformer protected by fuse- switch or circuit breaker

Transformer

Low Voltage System

LV switchboard is either:

1. Fitted with a fuse protected shielded feeder pillar comprising:
   • 400 to 2500 A rated main incomer (switch or circuit breaker),
   • 125 to 800 A rated fuse protected feeders (4-10),
2. Fitted with a 250 to 2000 A rated compact type main circuit breaker and,
   • 60 to 800 A circuit breaker feeders.
